A complete guardrail accessories RFQ lists every part, not just the beam. Include posts, spacers, splice and post bolts, nuts, washers, terminal ends, transitions, base plates, coating and packing. Then every supplier quotes the same scope, and nothing is missing on site.
When contractors, distributors and buyers ask for a guardrail quote, the beam is usually the first item they mention. But a barrier is not just W-beam or thrie-beam panels.
Posts, spacers, brackets, bolts, washers, terminal ends and base plates all affect installation speed, site safety and final cost.
For export projects in Southeast Asia, the Middle East, Africa and South America, missing parts cause real trouble after the goods arrive. A low beam price can become expensive if the quote leaves out parts needed for installation.
This guide gives a guardrail accessories checklist, shows how to compare quotes and explains how to avoid missing parts.
Why the Small Parts Matter in Procurement
In most road safety projects, the beam is only one part of the system. The crew also needs the right posts, connection hardware and end treatments. If one small part is missing, the project may face delays, air freight costs or changes on site.
This matters most for buyers who import by container. Once the shipment leaves the factory, replacing a missing bolt, spacer or terminal part can take weeks. For remote sites, islands or roads spread over many locations, the delay costs even more.

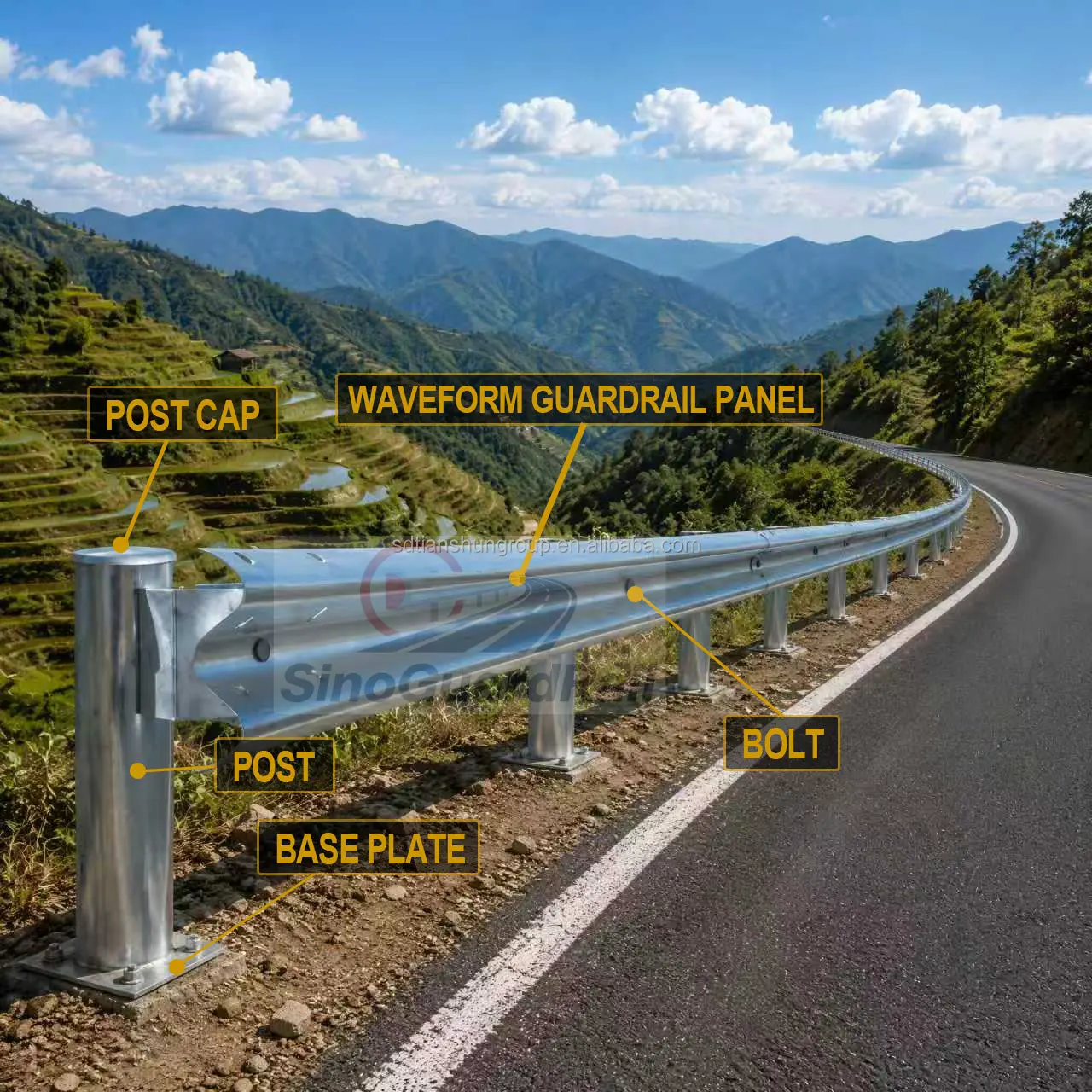

Common Parts in a Complete Guardrail System
The exact list depends on the project drawing, barrier type and installation method. Most highway systems include the parts below.
| Part | Main job | What to confirm in the RFQ |
|---|---|---|
| Posts | Hold up the beam and carry load into the ground | Post type, length, thickness, spacing, base plate or driven |
| Spacers or blockouts | Hold the beam away from the post | Material, size, hole position and matching post type |
| Bolts, nuts and washers | Join beams, posts, spacers and other parts | Bolt size, grade, coating, quantity per joint and spares |
| Terminal ends | Finish each end of a barrier run safely | Terminal type, left or right hand, drawing and quantity |
| Brackets and connectors | Join different parts or fit special sections | Drawing, hole spacing, thickness and matching beam profile |
| Base plates and anchors | Fix posts to concrete or bridge decks | Plate size, hole position, anchor bolt type and foundation |
Start the RFQ from the Complete System, Not the Beam Price
A common mistake is asking for a W-beam price per metre without defining the parts scope. The quotes may look alike but cover different items.
For example, one supplier may quote only the beam. Another may include beams, posts, spacers, bolts and terminal ends. These two quotes cannot be compared directly.
When you ask for a W-beam or thrie-beam quote, ask the supplier to state clearly if it includes:
-
Beams
-
Posts
-
Spacers or blockouts
-
Post caps
-
Bolts, nuts and washers
-
Terminal ends
-
Transition sections
-
Base plates or anchor bolts, if needed
-
Packing materials
-
Recommended spare parts
Example: Parts for 1,000 m of W-Beam
The table shows a rough part count for 1,000 m of single-sided W-beam in a common AASHTO-style layout. It uses 3810 mm effective rail length and 1905 mm post spacing. Use it to sanity-check a quote, not as an order list.
| Part | Rule | About per 1,000 m |
|---|---|---|
| W-beam rails | 1,000 ÷ 3.81 m | 263 pcs |
| Posts | 1,000 ÷ 1.905 m, plus 1 | 526 pcs |
| Spacers | One per post | 526 pcs |
| Splice bolts and nuts | 8 per splice | About 2,100 sets |
| Post bolts, nuts and washers | One per post | 526 sets |
| Terminal ends | Per run end, from the drawing | Per layout |
Add spares for remote sites. Curves, transitions and terminals change the count, so the drawing always decides.
Information to Give Before the Quote
The more complete the RFQ, the more accurate the quote. You do not need final construction drawings at the first stage. But give enough detail for the supplier to understand the project:
-
Target country and project location
-
Road type: highway, bridge, ramp, city road or mountain road
-
Barrier type: W-beam, thrie-beam or another system
-
Total length and number of sections
-
Post spacing
-
Post type and installation method
-
Beam thickness and coating
-
Terminal end type
-
Whether base plates or anchors are needed
-
Destination port or delivery site
-
Delivery schedule
Send project drawings with the RFQ if you have them. If not, photos, sketches and a simple parts list still help the supplier prepare a useful quote.
Procurement Risks by Market
Each export market has its own risks. A complete parts list cuts these risks before production and shipment.
| Market | Common buyer concern | Parts details to check |
|---|---|---|
| Southeast Asia | Humidity, coastal sites, road upgrades, mixed sections | Galvanizing, bolts, terminal ends, post spacing, full packing list |
| Middle East | Long highways, high heat, large orders | Beam thickness, post type, bolt quantity, loading plan, spares |
| Africa | Remote sites, long inland transport, few local spares | Extra bolts, terminal parts, post caps, strong packing, installation papers |
| South America | Port delivery, mountain roads, different specifications | Post foundation, curve parts, coating, part compatibility |
Bolts, Nuts and Washers: Small but Critical
Bolts, nuts and washers cost little, but they matter a lot on site. Missing or wrong bolts can stop a whole crew. Confirm the total quantity, and also the size, hole match, coating and where each bolt goes.
A good RFQ lists each fastener type on its own line. Splice bolts, post bolts, anchor bolts and special connector bolts are often different. If the project mixes beam types or uses transitions, check the bolt list with extra care.
Our standard range is M16 bolts in class 4.8 or 8.8, hot-dip galvanized. See our bolts, spacers and delineators page.
Posts and Foundations
Posts must suit the road and the installation method. Some projects use driven posts. Bridges and concrete sections need base plates and anchor bolts. Some roads need different post lengths in different sections.
Before ordering, confirm which post the drawing calls for: H, Sigma, U, C or round. Also confirm length, thickness, hole positions, coating and whether post caps are included. See our H, Sigma, U, C and round posts and the post types guide.
Coating and Corrosion Protection
Hardware needs the same level of corrosion protection as the beam. If beams are hot-dip galvanized but bolts, washers or brackets have a thinner coating, the joints become weak points over time.
For humid, coastal or tropical sites, confirm the coating for every part, not only the beam.
How to Compare Supplier Quotations
To compare suppliers fairly, ask each one for a detailed part list. A lower unit price may not be cheaper if it leaves out key parts.
| Item | What to check |
|---|---|
| Part scope | Are beams, posts, spacers, bolts, terminals and other parts included? |
| Quantity basis | Is the quote based on metres, sets, drawings or a full bill of materials? |
| Steel and thickness | Are steel grade, beam and post thickness, and coating clearly stated? |
| Fit | Do holes, bolts and spacers match the chosen beam and post? |
| Packing | Are small parts packed and labelled so nothing is lost when unloading? |
| Documents | Can the supplier give drawings, a packing list and installation information? |
Common RFQ Mistakes to Avoid
-
Asking only for a beam price per metre
-
Not confirming whether posts are included
-
Ignoring bolts, nuts, washers and spacers
-
Not stating terminal end type and quantity
-
Using one parts list for different road sections
-
Forgetting base plates and anchor bolts for concrete sections
-
Not confirming the coating on small parts
-
Accepting a quote without a detailed packing list
-
Not ordering spares for remote sites
Guardrail Accessories Checklist for Your RFQ
Before you send an inquiry, check that it covers:
-
Barrier type: W-beam, thrie-beam or mixed
-
Total length and number of sections
-
Beam thickness and coating
-
Post type, length, thickness and spacing
-
Spacer or blockout type
-
Bolts, nuts and washers
-
Terminal end type and quantity
-
Base plates or anchor bolts
-
Transition sections
-
Destination port and delivery schedule
-
Required documents and packing list
Example RFQ line:
1,000 m W-beam 4130 × 310 × 82 × 3.0 mm, HDG 550 g/m², with W150×13.5 H posts at 1905 mm, spacers, M16 splice and post bolts (class 4.8), 4 terminal ends, 5% spare bolts, CIF Mombasa.
Related Pages
Frequently Asked Questions
Can I buy only beams without the other parts?
Yes, if you already have matching posts, bolts and terminal parts. For new projects, it is safer to ask for a full system quote so nothing is missing.
Are the bolts the same for every project?
Not always. Bolt size, quantity and coating depend on the beam type, post type, spacer design and project drawing.
Should spare parts be included in the order?
For remote sites, export shipments or busy roads, yes. Spare bolts, washers, posts or terminal parts help avoid repair delays.
What is most often missing from guardrail orders?
Small parts such as bolts, washers, spacers, post caps and terminal hardware. They are often missed when the quote is not based on a full bill of materials.
Conclusion
A complete guardrail RFQ covers the full system, not only the beam. Confirm beams, posts, spacers, bolts, terminal ends, base plates, coating, packing and documents before you order.
