Thrie-Beam Guardrail Systems
What Is a Thrie-Beam Guardrail?
A Thrie-beam guardrail is a roadside barrier made of corrugated steel rails with a three-wave profile. It is taller and stiffer than a W-beam rail, so it deflects less when hit. That makes it a common choice for bridge approaches, medians and other high-risk sections. For a full explanation, read what is a Thrie-beam guardrail.
Thrie-Beam vs W-Beam in Three Points
- Profile: Thrie-beam has three waves (about 506 mm wide); W-beam has two (about 310 mm wide).
- Stiffness: Thrie-beam is stiffer and deflects less, which helps where space behind the barrier is limited.
- Use: W-beam suits most roadsides; Thrie-beam is used at bridges, transitions and high-risk curves.
See the detailed comparison in W-beam vs Thrie-beam guardrail.
Thrie-Beam Guardrail Products
| Product | Best for |
|---|---|

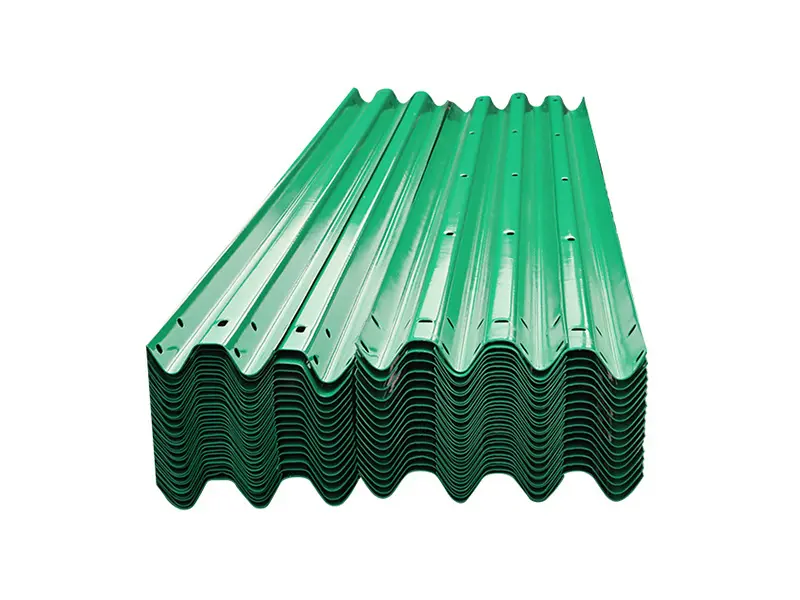

| Thrie-beam guardrail | Three-wave rails made to your drawing, including AASHTO M180 projects |

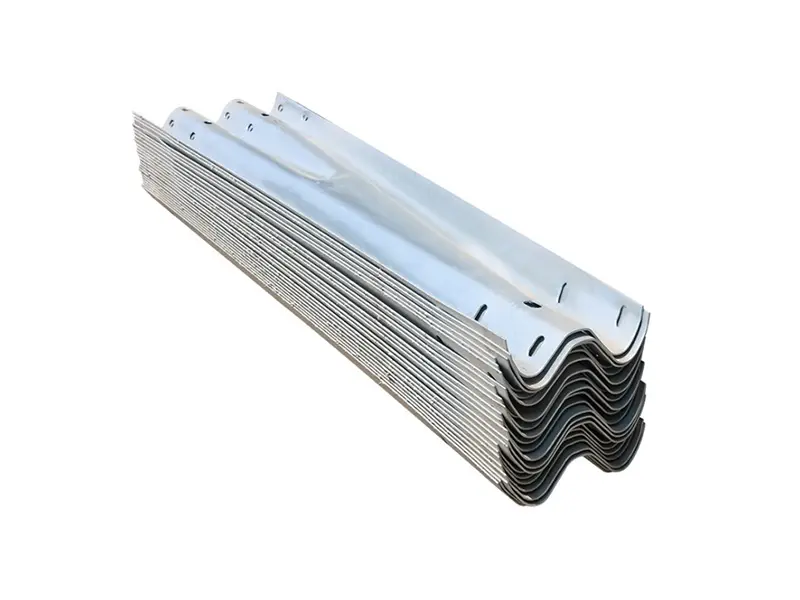

| W-beam to Thrie-beam transition | Connecting a W-beam run to a Thrie-beam or bridge barrier |
| Bridge guardrail | Bridge decks and viaducts |
| Thrie-beam fishtail end | Finishing the rail end on low-speed sections |

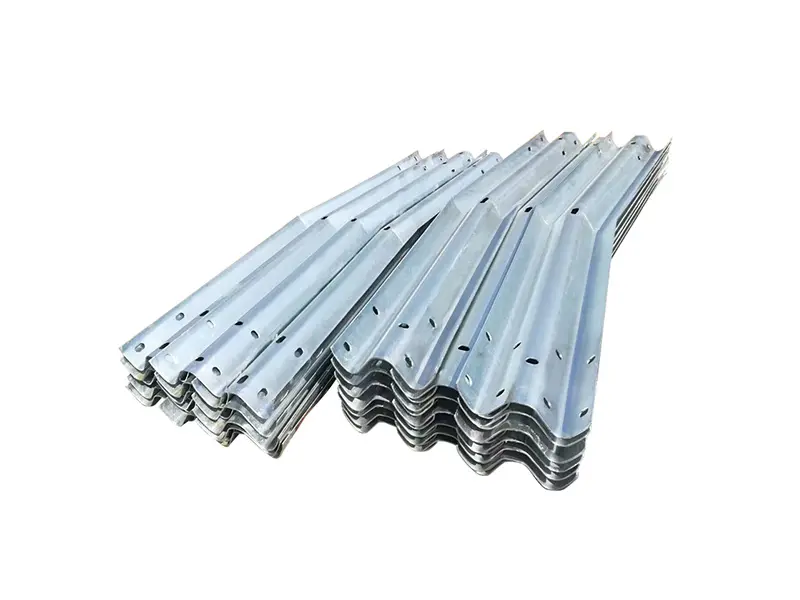

| End terminal anchor system | Anchoring the rail ends |
| Curved guardrail beams | Shop-curved Thrie-beam rails for tight curves and bridge ends |
Typical Thrie-Beam Guardrail Dimensions
- Width x depth: about 506 mm x 83–85 mm.
- Thickness: 2.67 mm or 3.43 mm under AASHTO M180; 3 mm or 4 mm in many EN and Asian projects.
- Length: 3810 mm effective (AASHTO) or 4320 mm total (common EN / Asian profile).
- Coating: hot-dip galvanized to the coating weight in your specification.
Final dimensions follow the approved drawing. For weight and full tables, see Thrie-beam guardrail dimensions.
Thrie-Beam Guardrail FAQ
When should I use Thrie-beam instead of W-beam?
Use Thrie-beam where the project design calls for it, usually at bridge approaches, transitions, medians and locations with heavy vehicles or limited space behind the barrier.
Can Thrie-beam use the same posts as W-beam?
Often the post types are similar, but spacers, hole positions and mounting height are different. Always follow the system drawing. See our guardrail posts.
Can you supply the full Thrie-beam system?
Yes. We supply rails, posts, spacers, bolts, transitions and terminals in one shipment, checked against your BOQ. Send your drawing through our contact page.
Specifications and Project Requirements for Thrie-Beam Guardrail
Compare Thrie-beam guardrail system components by profile, dimensions, steel grade, coating, project standard and application.
Request a Quote for Thrie-Beam Guardrail
Send drawings, BOQ and quantities to review the required Thrie-beam configuration and receive a project-specific quotation.
