What is a Guardrail on a Highway? Ultimate Engineering & Safety Guide

When traveling along expressways, mountain passes, or elevated bridges, you will notice continuous steel barriers lining the roadside and median. But what is a guardrail on a highway, how does it function during a high-speed collision, and what engineering standards govern its manufacturing?

A highway guardrail (also known as a road safety barrier or crash barrier) is a critical road safety infrastructure system designed to protect errant vehicles and their occupants from roadside hazards, steep slopes, bridge piers, and oncoming traffic. In this comprehensive guide, we explore the mechanical principles, primary types, global engineering standards (such as AASHTO M180 and MASH TL4), and installation specifications that civil engineers and road contractors must know.

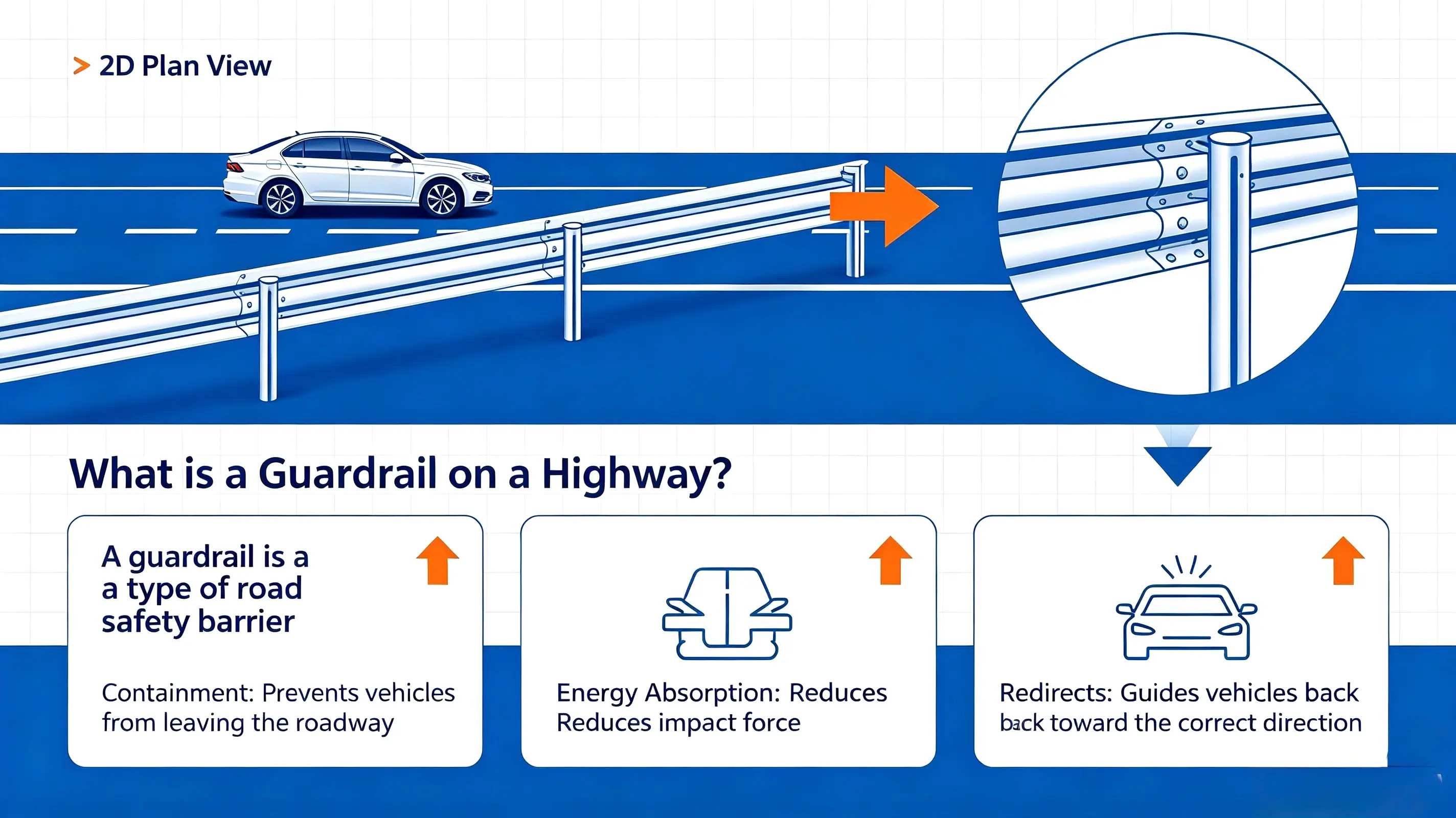

1. What is the Primary Purpose and Working Mechanism of a Highway Guardrail?

A highway guardrail is not just a rigid physical wall; it is an engineered energy-dissipating dynamic safety system. When an errant vehicle strikes a barrier at highway speed, the guardrail achieves three crucial safety objectives:

• Energy Absorption: The system deforms upon collision, redirecting kinetic energy into controlled mechanical deformation of the steel corrugated beams and posts.

• Vehicle Redirection: Instead of stopping a vehicle abruptly (which causes fatal deceleration forces) or letting it penetrate into dangerous areas, the rail safely redirects the vehicle back into the travel lane at a shallow angle.

• Prevention of Vaulting & Under-riding: By maintaining a strictly engineered mounting height and post spacing, guardrails prevent vehicles from rolling over the barrier or sliding underneath it.

2. Key Types of Highway Guardrails in Modern Road Infrastructure

Depending on traffic volume, speed limits, vehicle classifications, and geographical conditions, different types of highway barriers are deployed:

2.1 W-Beam Guardrail (Semi-Rigid Barrier)

The W-Beam Galvanized Guardrail is the most widely installed crash barrier worldwide. Featuring a distinctive two-wave corrugation profile (typically 310mm width), it offers a balance of cost-effectiveness, strong tensile strength, and straightforward replacement. It is commonly specified for primary highways, urban expressways, and rural corridors.

2.2 Thrie-Beam Guardrail (Heavy-Duty Protection)

The Thrie-Beam Guardrail incorporates a triple-wave profile (510mm width), providing a significantly larger contact surface and higher containment level. It is widely engineered for sharp curves, bridge approaches, heavy-truck transport routes, and high-speed highway medians.

2.3 MASH TL4 Safety Roller Barrier (High-Tech Impact Conversion)

The innovative Safety Roller Barrier utilizes rotating EVA/Polyurethane barrels mounted on high-strength steel posts. Upon impact, the barrels convert frontal impact energy into rotational kinetic energy, drastically lowering vehicle damage and occupant injury. Certified under the stringent MASH TL4 (100 km/h) crash test standard, it represents the gold standard for high-risk zones, sharp ramps, cliff edges, and tunnel portals.

2.4 Bridge Guardrail & Transition Barriers

Engineered specifically for elevated structures, Bridge Guardrails prevent catastrophic falls and withstand severe structural loads, seamlessly integrating with road approach transitions.

3. Key Components of a Complete Highway Guardrail System

A certified road safety barrier system is composed of precision-engineered components that work in tandem:

4. International Standards and Corrosion Protection

Highway barrier procurement requires strict compliance with international manufacturing and safety certifications:

• AASHTO M180: Standard specification for corrugated sheet steel beams for highway guardrails (Class A, Class B, Type I & Type II).

• EN 1317 (European Standard): Defines containment levels (N2, H1, H2, H3), working width, and impact severity levels (ASI).

• MASH (Manual for Assessing Safety Hardware): Evaluates vehicle crash performance, including rigorous MASH TL4 certification for heavy-duty protection.

• Hot-Dip Galvanization (ASTM A123 / ISO 1461): To survive harsh desert humidity in the Middle East, tropical monsoon rains in Southeast Asia, or coastal salt spray in South America, steel components are protected with heavy zinc coatings (ranging from 550 g/m² up to 1100 g/m² / 85μm+), delivering 20 to 50 years of maintenance-free service life.

5. Why Source Highway Guardrails from Shandong Sino Guardrail?

As a global highway safety barrier manufacturer with over 25 years of engineering and export expertise, Shandong sinoguardrail Traffic Facilities Co., Ltd. delivers end-to-end highway security solutions to government transport authorities, EPC contractors, and infrastructure distributors:

• Exclusive MASH TL4 Certification: We are proud to hold full MASH TL4 (100km/h) crash test accreditation.

• Internationally Certified Quality: All products are verified by ISO, SGS, CE, and Bureau Veritas (BV) audits.

• Rigorous 15-Step QC Process: From raw steel coil chemical analysis to zinc adhesion testing and dimensional precision control, ensuring a 98% re-order rate from global clients.

• Complete Supply Chain: One-stop sourcing for Beams, Posts (Sigma, H, U, C, Round), Spacers, Transition Pieces, and all fastening accessories.
